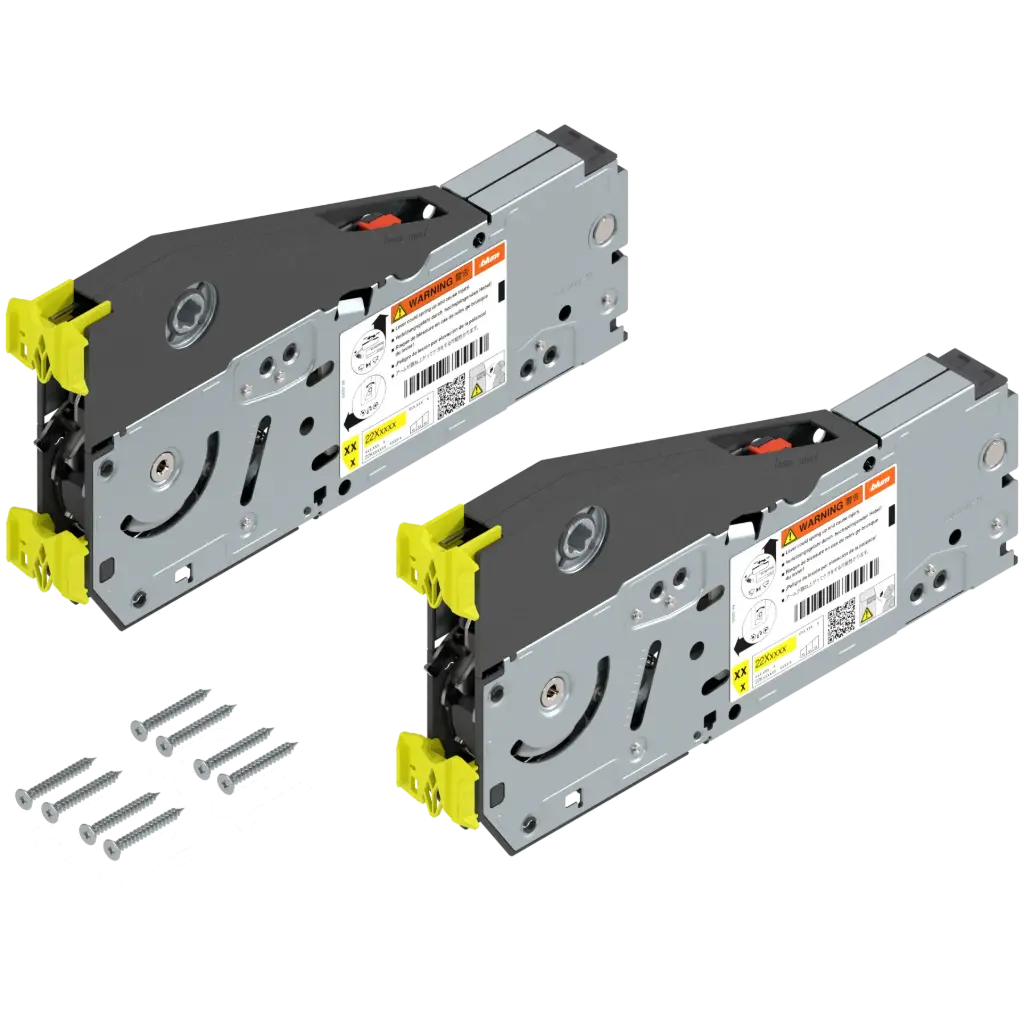

AVENTOS HFBi-Fold Lift2 Power Ranges
The Blum AVENTOS HF top mechanism powers the bi-fold lift system, enabling two-part cabinet doors to fold upward together. This mechanism is mounted at the top of the cabinet side and drives the signature HF folding motion with BLUMOTION soft-close. Available in two power factor ranges and two mounting styles to accommodate different door weights and installation methods.
| System | AVENTOS HF |
| Lift Type | Bi-Fold |
| Power Ranges | 5.1–21.1 kg / 8.7–35.9 kg |
| Mounting | Screw-On, Pre-Mounted Euro Screws |
Technical Specifications
SystemAVENTOS HF
Lift TypeBi-Fold Lift
PositionTop Mechanism
Closing MechanismBLUMOTION Integrated
MaterialSteel
FinishNickel Plated
BrandBlum
Applications
- Overhead cabinets with bi-fold doors
- Tall wall cabinets requiring wide access
- Kitchens with limited overhead clearance
Compatible Products
🇨🇦 Ships across Canada from Mississauga, ON • 📞 +1 (905) 678-8464 • 🛡 Blum Lifetime Warranty
Blum® — Genuine Austrian-made hardware. Order by 3 PM for same-day dispatch.
| Load Capacity | 5.1 to 21.1 kg or 8.7 to 35.9 kg |
| LF Power Factor | 2700 - 13500 or 10000 - 19300 |
| Fixing Type | Screw-On or Pre-Mounted Euro Screws |
| Brand | Blum |
| Interior Dimensions Required - Depth | 264mm |
| Hinge Opening Angle | 116° |
| Door Height | 480 to 1 200 mm |
| Door Width | 0 to 1 800 mm |
