Thick DoorsUp to 24 mm3 Overlay Options
Blum CLIP Top hinges for thick doors are engineered for door thicknesses up to 24 mm. Available in full overlay, half overlay, and inset configurations, these hinges feature the reliable CLIP tool-free mounting system with three-dimensional adjustment. Choose from screw-on, dowel, or Inserta mounting types to suit your installation requirements.
| Door Thickness | Up to 24 mm |
| Overlay Options | Full Overlay, Half Overlay, Inset |
| Mounting Types | Screw-On, Dowel, Inserta |
| Adjustment | 3-Dimensional |
| Cup Diameter | 35 mm |
| Opening Angle | 95° |
Technical Specifications
SystemCLIP top BLUMOTION
Opening Angle95°
Closing MechanismSoft Close
Cup Diameter35 mm
Drilling Depth13 mm
Door Thickness24-32 mm
Application TypesOverlay, Half Overlay
MountingScrew-on, INSERTA, EXPANDO
Adjustment3D (height, depth, lateral)
Finish OptionsNickel Plated

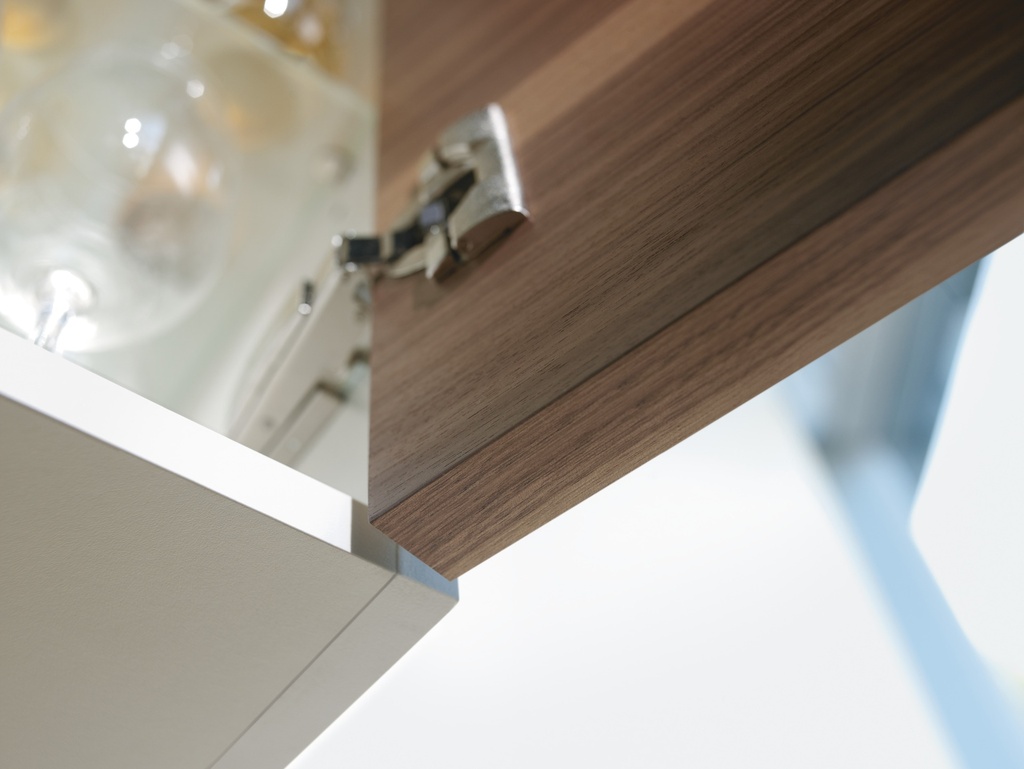

Applications
- Solid wood and thick panel cabinets
- Premium kitchen cabinetry with thick doors
- Custom wardrobes and storage units
- Commercial millwork with heavy doors
Compatible Products
Technical Documents
🇨🇦 from Mississauga, ON • 📞 +1 (905) 678-8464 • 🛡 Blum Lifetime Warranty
Blum® — Genuine Austrian-made hardware. Order by 3 PM for same-day dispatch.
| Fixing Type | Dowel or Screw-On or Inserta |
| Door Position | Full Overlay or Half Overlay or Inset |
| Brand | Blum |
