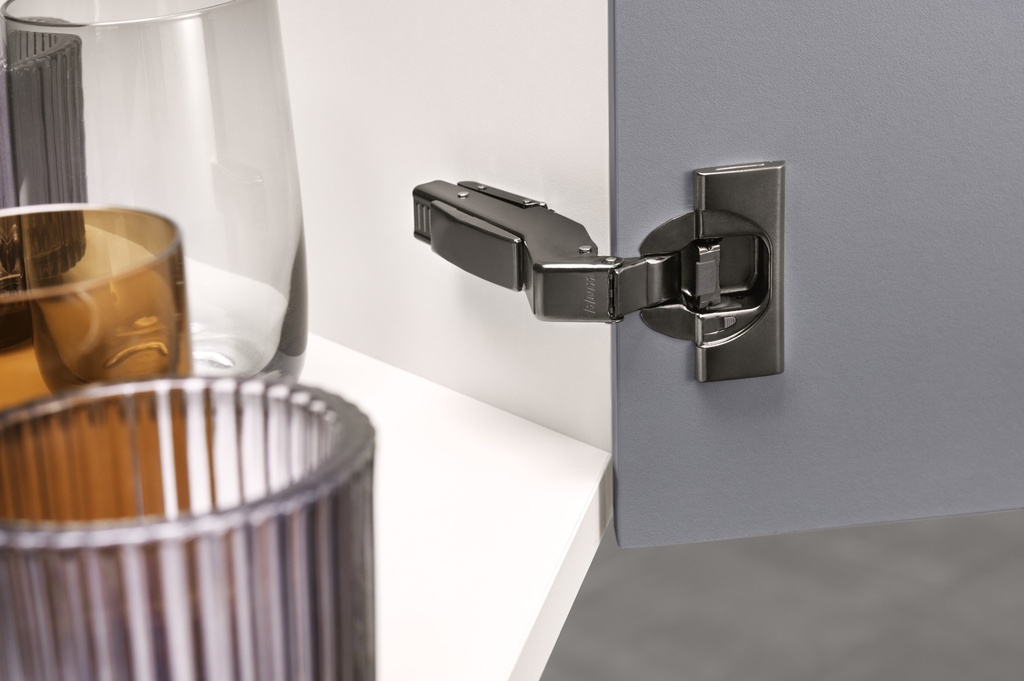

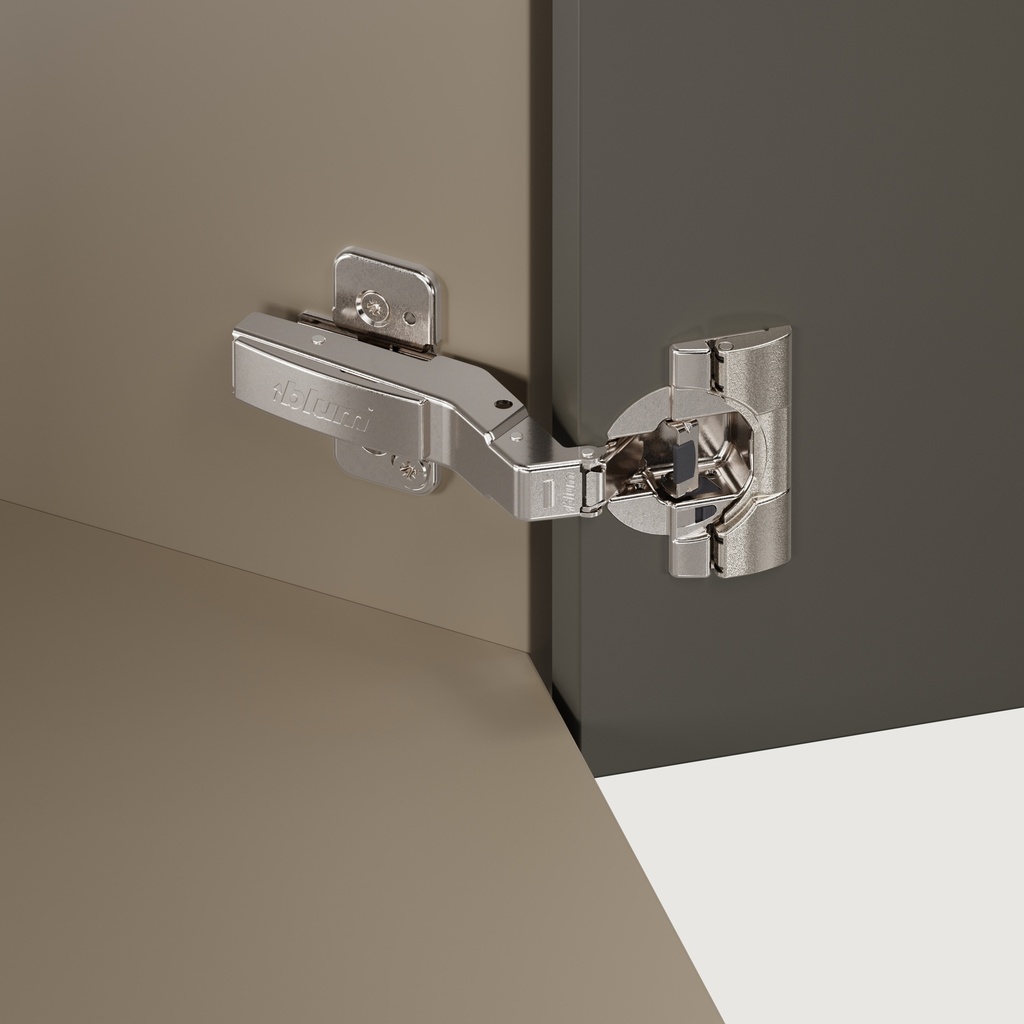

The Blum CLIP top BLUMOTION +45° II angled hinge is designed for cabinets where the side panel is angled at +45° from the standard position. Integrated BLUMOTION soft-close technology delivers smooth, quiet, and controlled door closure—even in these challenging corner cabinet configurations.
The tool-free CLIP mechanism enables quick snap-on mounting plate attachment, while the BLUMOTION damping automatically adapts to door dynamics regardless of size, weight, or closing force. Full 3-dimensional adjustment ensures precise door alignment on +45° angled installations. Compatible with all CLIP mounting plate variants.
Technical Specifications
Applications
Cabinets with +45° angled side panels • Diagonal corner wall cabinets • Corner base cabinets • Angled peninsula units • Custom kitchen and bathroom cabinetry with 45-degree panel joints
Compatible Products
Technical Documents
| Fixing Type | Dowel or Screw-On or Toolless |
| Finish | Nickel or Onyx Black |
| Brand | Blum |
| Closing Mechanism | Blumotion |
| Hinge Opening Angle | 45° |
| Milling Diameter | 35mm |
