110°
Opening Angle
BLUMOTION
Soft Close
3-Way
Adjustment
CLIP top
System

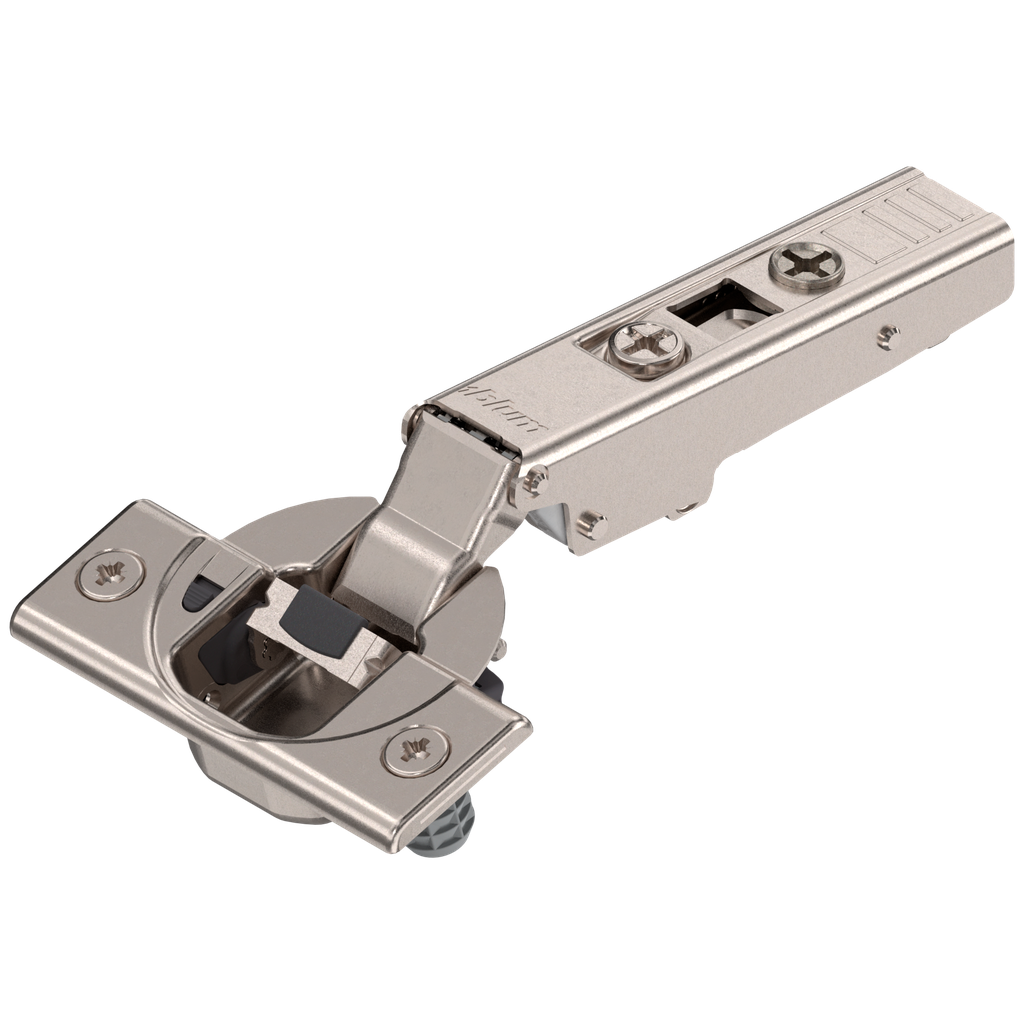

The CLIP top BLUMOTION 110° concealed hinge delivers integrated soft-close damping for quiet, controlled door closure. Designed for standard cabinet applications with a 35 mm cup and tool-free CLIP mounting, it supports overlay, half overlay, and inset door configurations.
Available with screw-on, INSERTA, or EXPANDO mounting plates. Compatible with frameless cabinets in kitchen, bath, bedroom, and general furniture applications. Onyx Black finish option available for dark cabinet interiors.
Technical Specifications
System
CLIP top BLUMOTION
Opening Angle
110°
Cup Diameter
35 mm
Drilling Depth
13 mm
Door Thickness
16–24 mm
Application Types
Overlay, Half Overlay, Inset
Mounting
Screw-on, INSERTA, EXPANDO
Adjustment
3D (height, depth, lateral)
Finish Options
Nickel Plated, Onyx Black
Applications
Kitchen cabinetry • Bathroom vanities • Bedroom wardrobes • Utility and storage cabinets • Office furniture • frameless construction
Compatible Products
🇨🇦 Ships across Canada from Mississauga, ON
☎ +1 (905) 678-8464
🛡 Blum Lifetime Warranty
| Fixing Type | Dowel or Screw-On or Toolless |
| Overlay | Full Overlay or Half Overlay or Inset |
| Finish | Nickel or Onyx Black |
| Brand | Blum |
| Closing Mechanism | Soft Close |
| Hinge Opening Angle | 110 Deg |
| Milling Diameter | 35mm |
