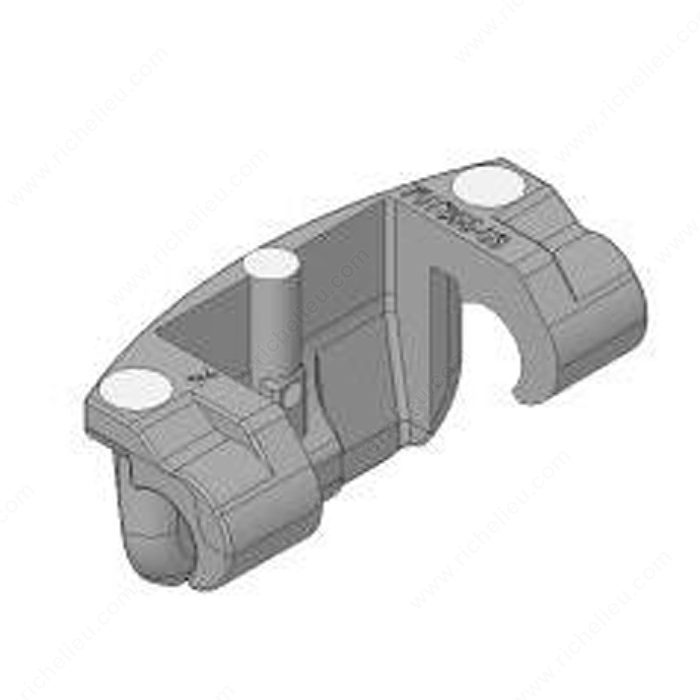

The Blum opening angle stop restricts the maximum opening angle of CLIP top 110° hinges to approximately 86°. This accessory is essential when cabinet doors would otherwise collide with walls, appliances, or adjacent cabinets at full 110° opening.

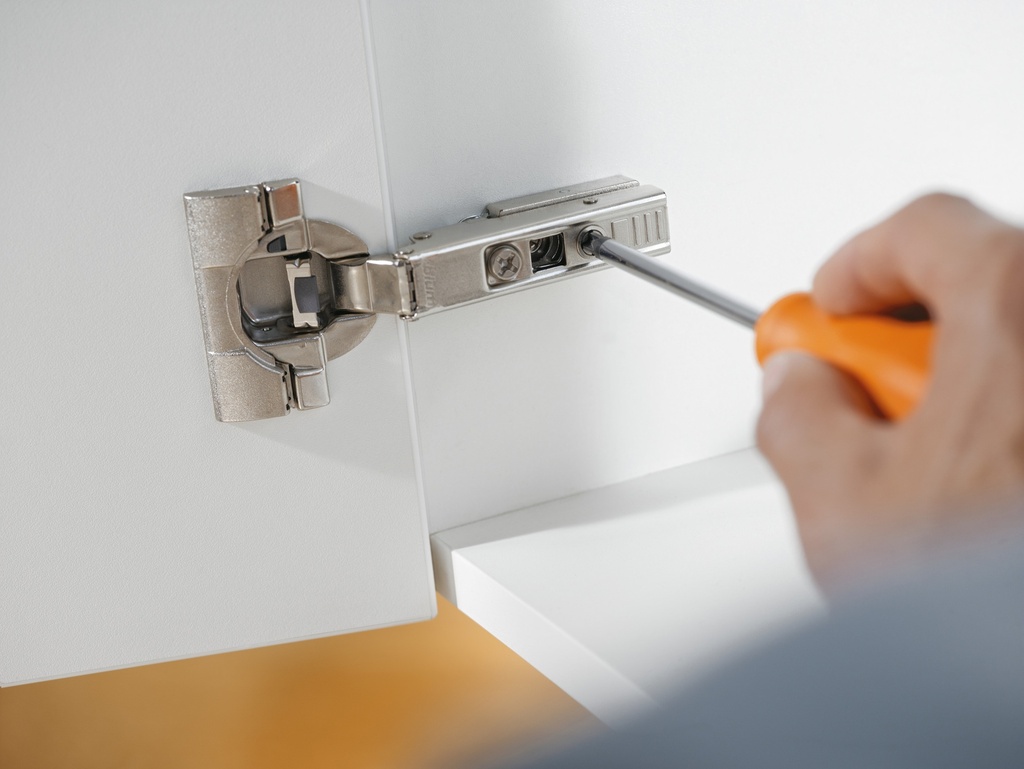

The stop simply snaps onto the hinge arm — no tools required. It can be added or removed at any time without affecting the hinge's soft-close BLUMOTION function. Designed exclusively for use with Blum CLIP top and CLIP top BLUMOTION 110° hinges.
Technical Specifications
| Product Type | Opening angle stop |
| Restricted Opening Angle | 86° |
| Compatible Hinges | CLIP top / CLIP top BLUMOTION 110° |
| Installation Method | Snap-on (tool-free) |
| Material | Plastic |
| Colour | Black |
| Quantity Required | One per hinge |
Applications
Use wherever 110° hinge opening would cause door collisions — next to walls, side panels, appliances, or adjacent cabinets. Common in kitchen corner cabinets, tall pantry units, and any installation where full opening is restricted by surrounding structures. Compatible with all CLIP top and CLIP top BLUMOTION 110° hinge variants including full overlay, half overlay, and inset applications.
Compatible Products
Blum Opening Angle Stop — Engineered in Austria
| Brand | Blum |
