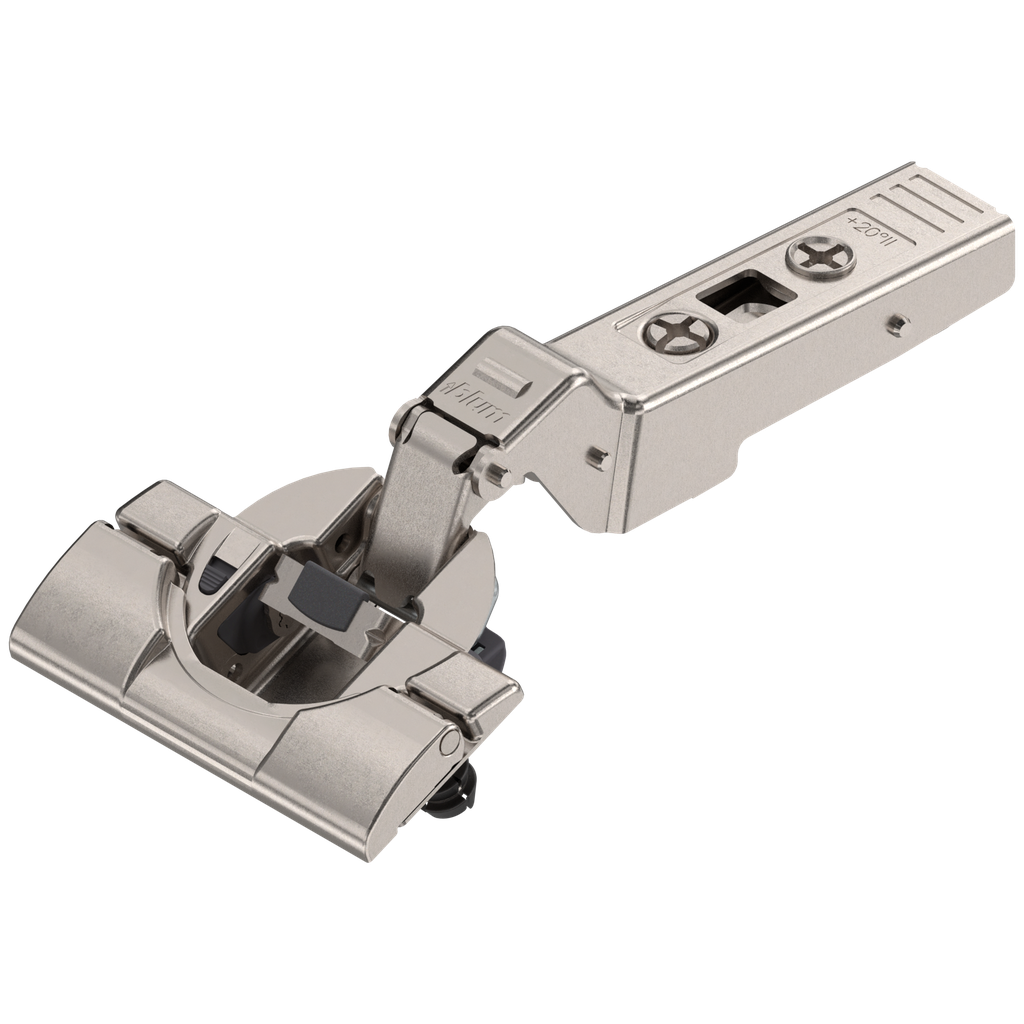

The Blum CLIP top BLUMOTION +20° angled hinge is engineered for cabinets where the side panel is angled +20° from the standard position. Featuring integrated BLUMOTION soft-close technology, every door closure is smooth, quiet, and controlled, eliminating slamming and reducing wear on both the hinge and the cabinet.

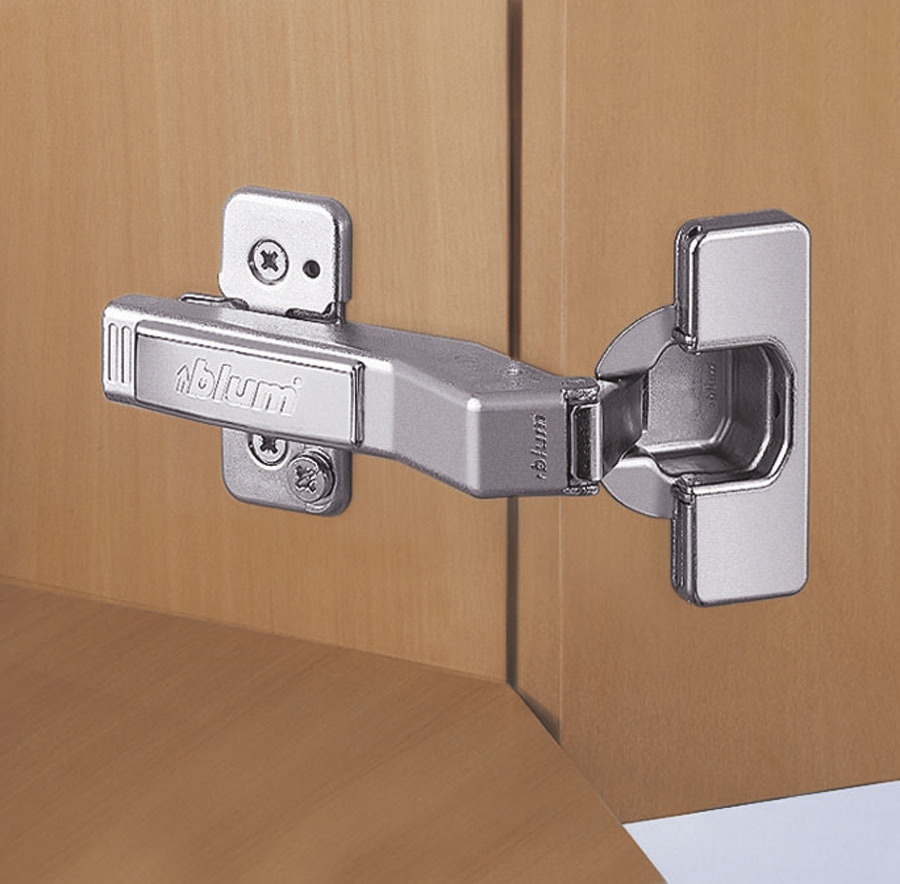

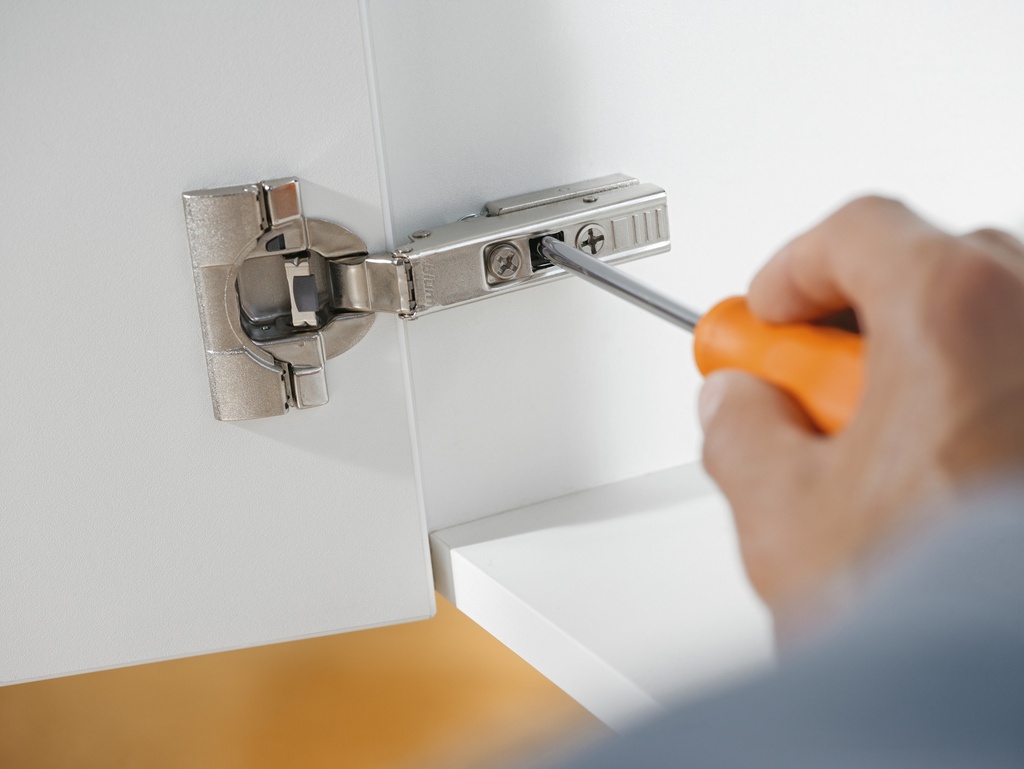

With a 95° opening angle optimized for angled installations, this hinge is ideal for diagonal corner cabinets, angled wall units, and custom millwork requiring non-standard panel angles. The CLIP top snap-on mechanism allows tool-free mounting and removal, streamlining installation and maintenance.

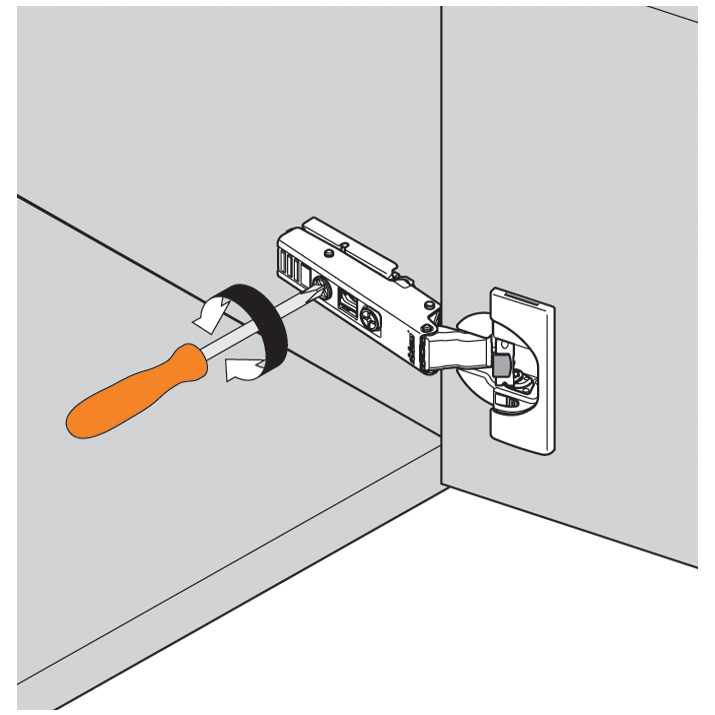

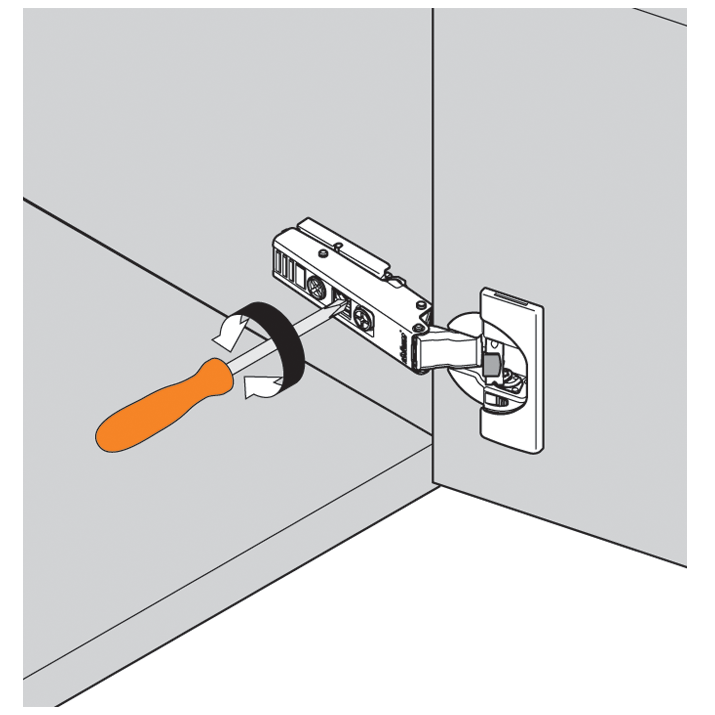

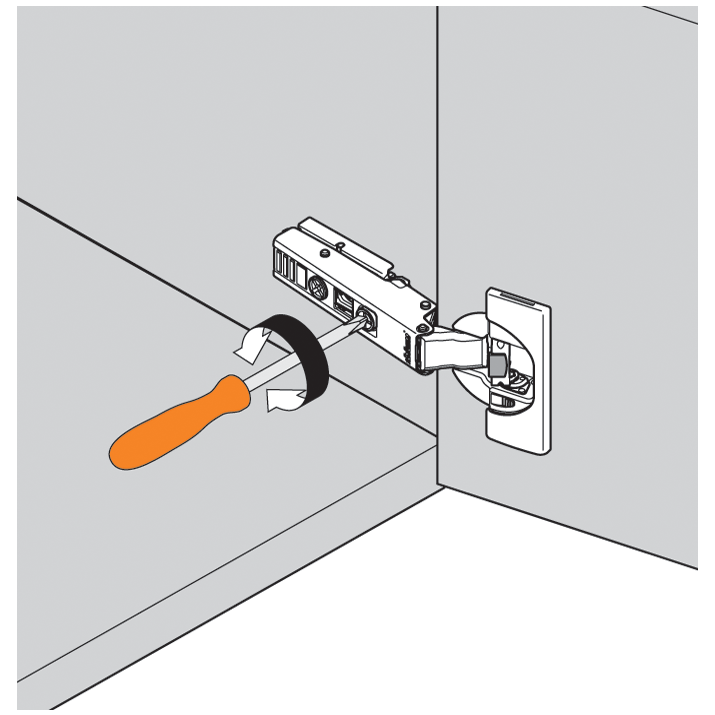

The overlay cranking ensures the door sits flush against the angled panel when closed, delivering a clean, professional appearance. Three-dimensional adjustment (±1.8 mm side, ±2 mm depth) allows fine-tuning of door alignment even on challenging angled configurations. The steel screw-on boss and nickel-plated finish ensure durability and corrosion resistance.
| Technical Specifications | |
|---|---|
| Opening Angle | 95° |
| Cabinet Angle | +20° |
| Closing Mechanism | BLUMOTION integrated soft-close |
| Cup Diameter | 35 mm |
| Door Application | Overlay |
| Boss Assembly | Screw-on |
| Boss Material | Steel |
| Side Adjustment | ± 1.8 mm |
| Depth Adjustment | ± 2 mm (spiral screw) |
| Finish | Nickel plated |
Applications

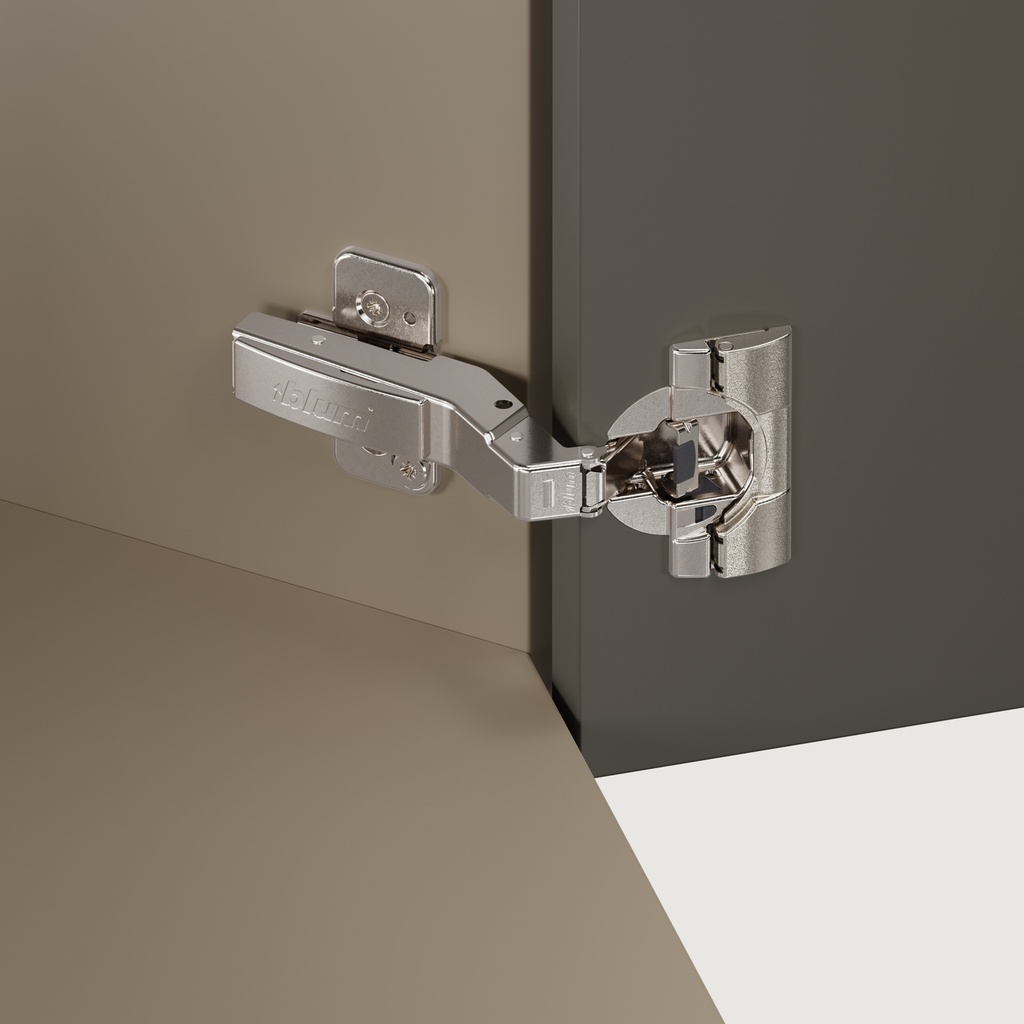

Designed for cabinets with +20° angled side panels, including diagonal corner wall cabinets, angled end units, peninsula cabinets, and custom furniture with non-standard panel angles. Perfect for kitchen and bathroom installations where wall or cabinet geometry requires positive-angle hinge solutions.
Compatible Products
✅ In stock • Ships within 1–2 business days • 📞 +1 (905) 678-8464 • Blum Lifetime Warranty • 1-Year Warranty
| Brand | Blum |
| Fixing Type | Screw-On |
| Milling Diameter | 35mm |
| Hinge Opening Angle | 20° |
| Finish | Nickel |
| Overlay | Full Overlay |
| Closing Mechanism | Blumotion |
