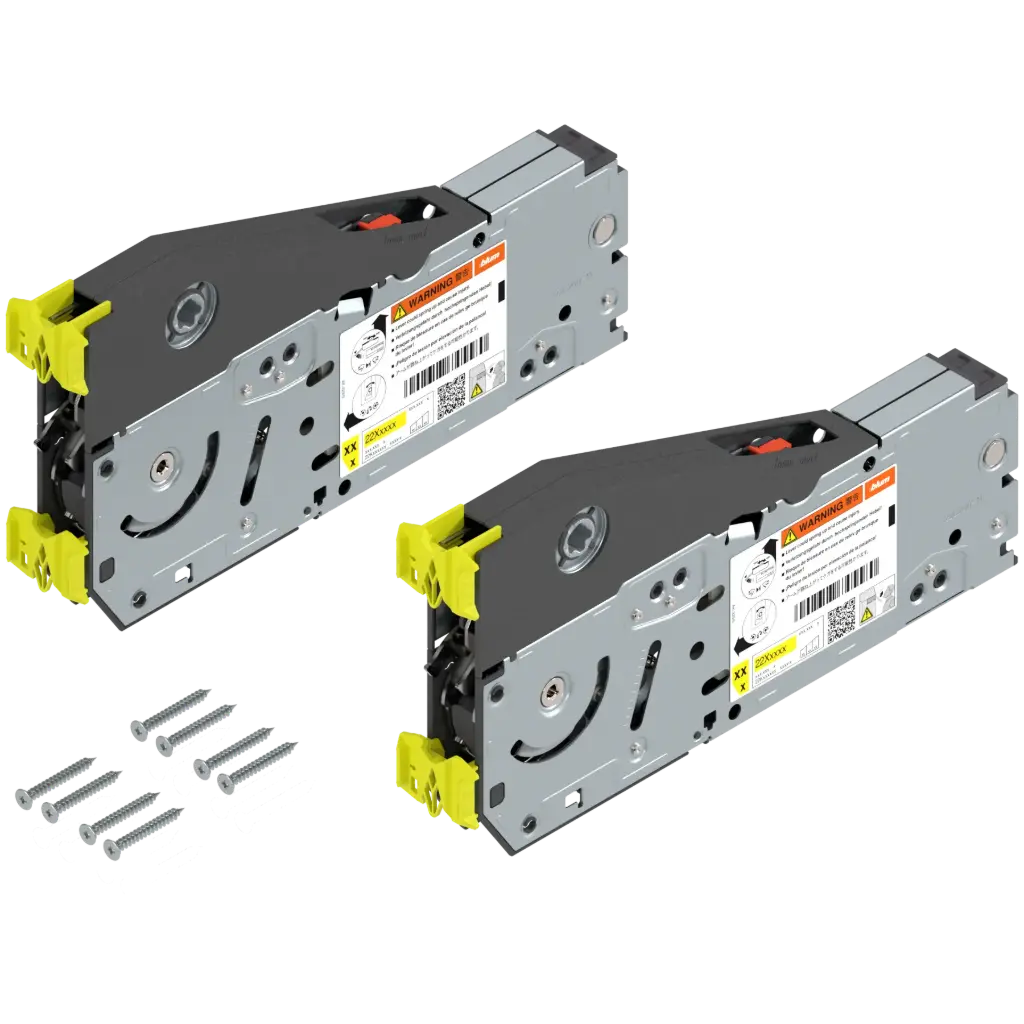

Aventos HF Top Mechanism

Blum AVENTOS HF top bi-fold mechanism, 116° opening, doors 480 to 1 200 mm tall, up to 1 800 mm wide.

Login to see price


  • Brand - Blum
  • Load Capacity
  • LF Power Factor
  • Fixing Type
  • Interior Dimensions Required - Depth
  • Hinge Opening Angle
  • Door Height
  • Door Width
Blum
SKU
 22F2500
Tags
Terms and conditions of sale
Ships from our Mississauga, ON warehouse
30-day returns with an RMA; restocking fee may apply
Load Capacity 5.1 to 21.1 kg, 8.7 to 35.9 kg
LF Power Factor 2700 - 13500, 10000 - 19300
Fixing Type Screw-On, Pre-Mounted Euro Screws
Brand Blum
Interior Dimensions Required - Depth 264mm
Hinge Opening Angle 116°
Door Height 480 to 1 200 mm
Door Width 0 to 1 800 mm
Contact Us
Brand: Blum
Interior Dimensions Required - Depth: 264mm
Hinge Opening Angle: 116°
Door Height: 480 to 1 200 mm
Door Width: 0 to 1 800 mm
AVENTOS HFBi-Fold Lift2 Power Ranges

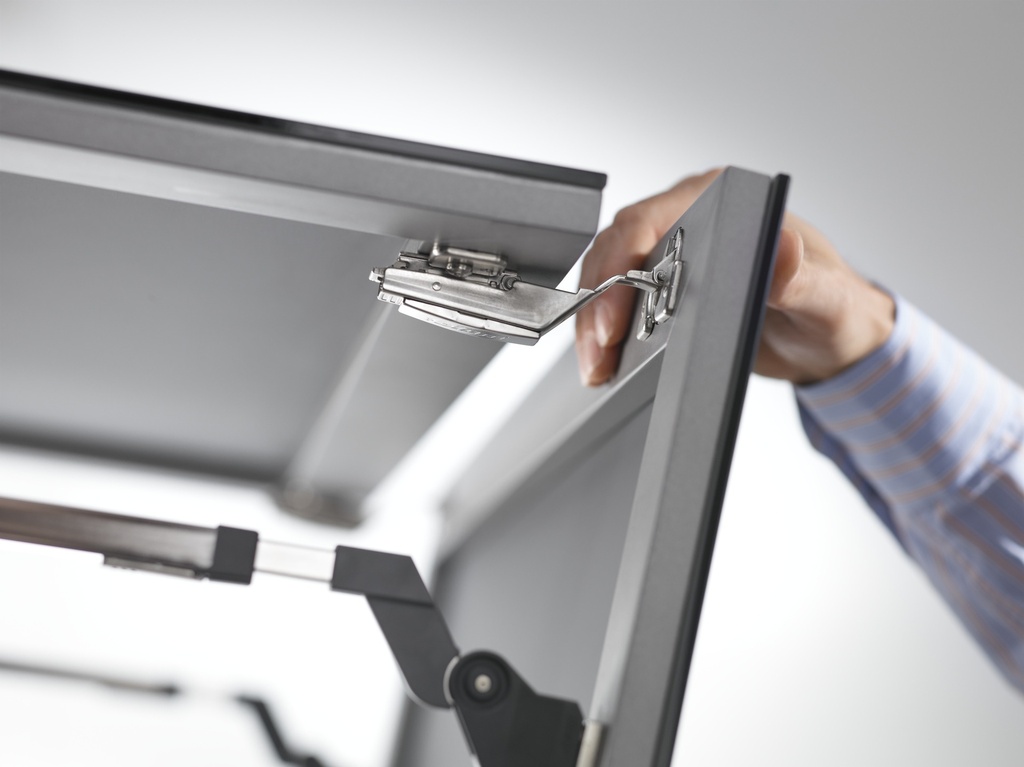

The Blum AVENTOS HF top mechanism powers the bi-fold lift system, enabling two-part cabinet doors to fold upward together. This mechanism is mounted at the top of the cabinet side and drives the signature HF folding motion with BLUMOTION soft-close. Available in two power factor ranges and two mounting styles to accommodate different door weights and installation methods.

SystemAVENTOS HF
Lift TypeBi-Fold
Power Ranges5.1–21.1 kg / 8.7–35.9 kg
MountingScrew-On, Pre-Mounted Euro Screws

Technical Specifications

SystemAVENTOS HF
Lift TypeBi-Fold Lift
PositionTop Mechanism
Closing MechanismBLUMOTION Integrated
MaterialSteel
FinishNickel Plated
BrandBlum

Applications

  • Overhead cabinets with bi-fold doors
  • Tall wall cabinets requiring wide access
  • Kitchens with limited overhead clearance
