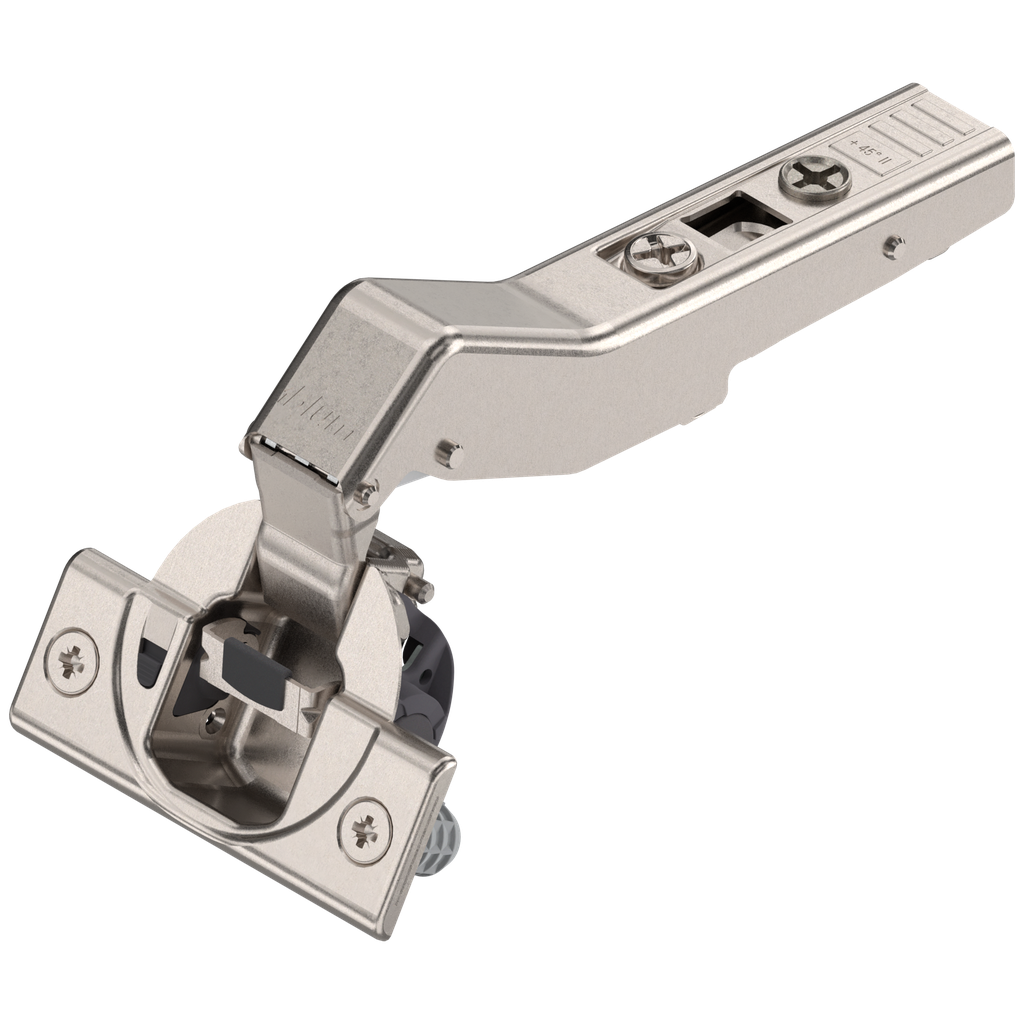

The Blum CLIP top BLUMOTION 45° II angled hinge is designed for cabinets with angled fronts, such as corner base cabinets and trapezoid wall cabinets. Featuring integrated BLUMOTION soft-close technology, this hinge provides smooth, quiet closure every time.
The 45° II designation means the door is angled 45° relative to the cabinet side. Ideal for diagonal corner cabinets, this hinge maintains full CLIP top functionality including 3-dimensional adjustment and tool-free INSERTA or EXPANDO mounting. Available in Nickel plated and Onyx Black finishes.
Technical Specifications
| Opening Angle | 45° |
| Application | Angled cabinets (45° II) |
| Closing Mechanism | BLUMOTION integrated soft-close |
| Cup Diameter | 35 mm |
| Fixing Types | Screw-On (INSERTA) / Dowel (EXPANDO) / Toolless |

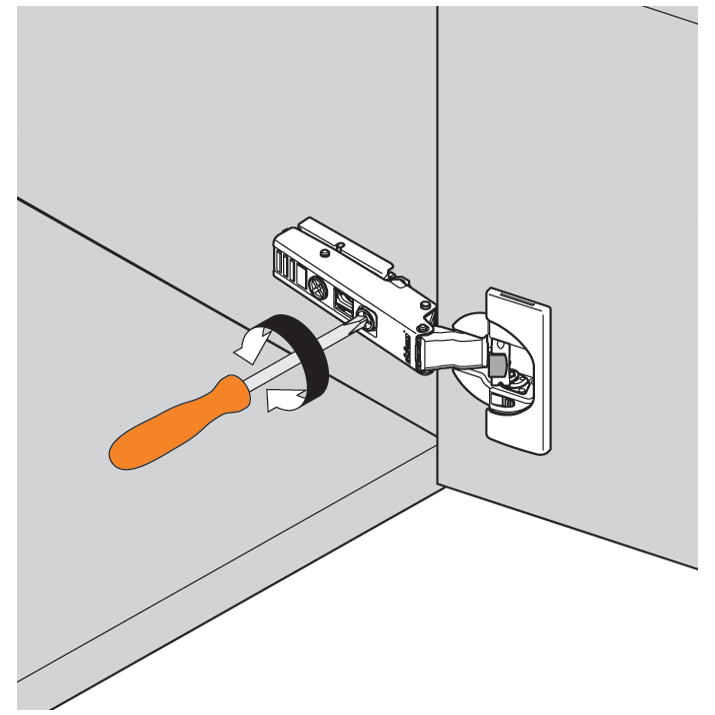

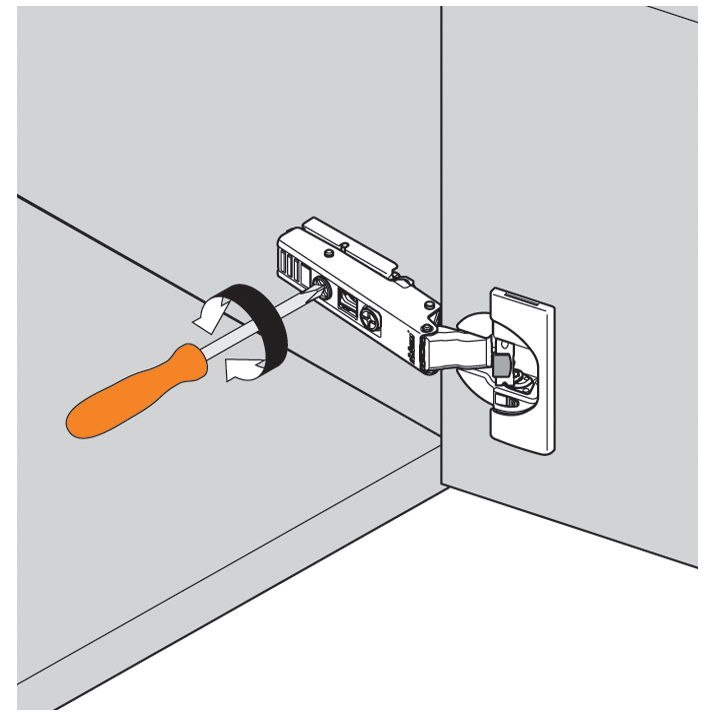

| Adjustment | 3-dimensional (height, depth, lateral) |
| Material | Steel |
| Finish | Nickel plated / Onyx Black |
| Mounting Plate | Sold separately (CLIP mounting plates) |
Applications
Diagonal corner base cabinets • Trapezoid wall cabinets • Angled display cabinets • Custom angled cabinetry • Kitchen corner units • Bathroom vanity corner cabinets
Compatible Products
🚚 Free shipping on orders over $500 • 📞 1-800-747-5710 • ✅ 30-day money-back guarantee
| Fixing Type | Dowel or Screw-On or Toolless |
| Finish | Nickel or Onyx Black |
| Brand | Blum |
| Closing Mechanism | Blumotion |
| Hinge Opening Angle | 45° |
| Milling Diameter | 35mm |
