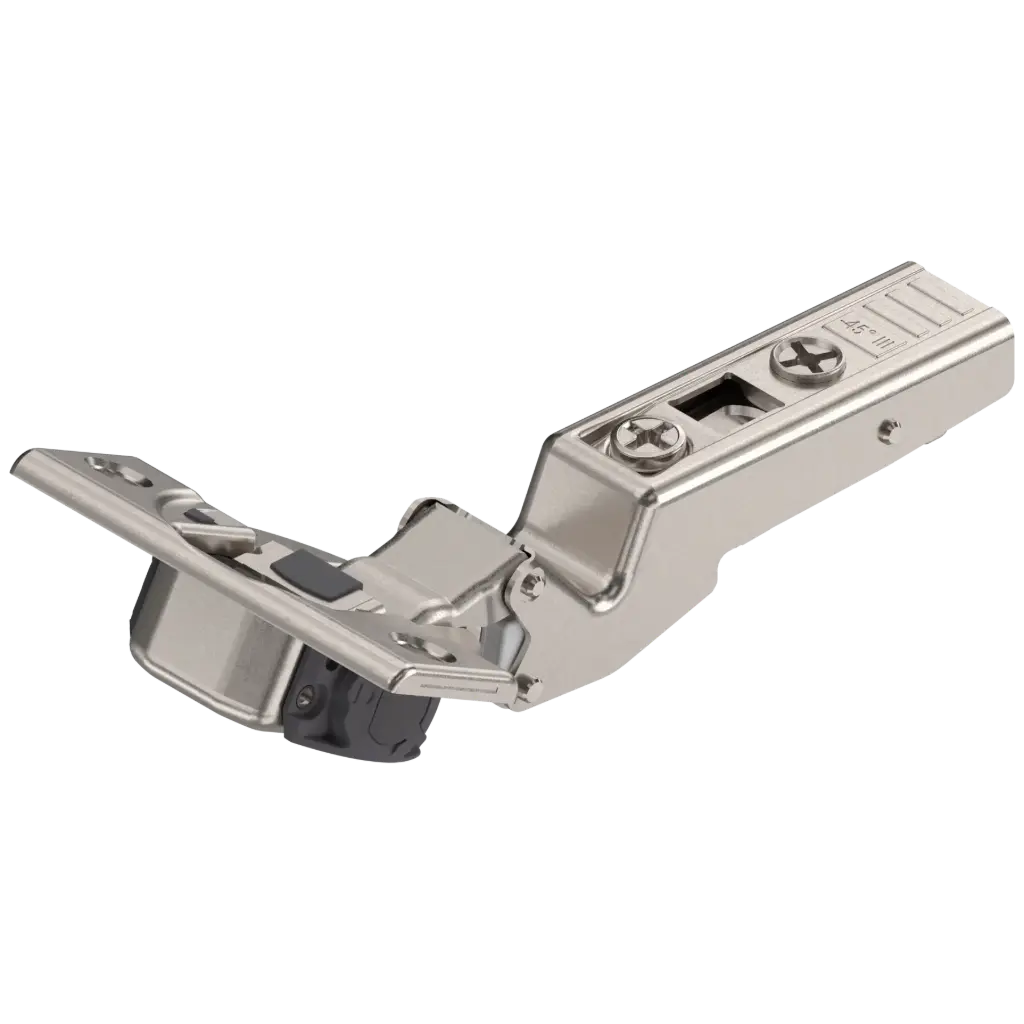

The Blum CLIP top BLUMOTION −45° III angled hinge is purpose-built for cabinets whose door panel sits at a steep negative 45-degree angle to the cabinet side. Common in base-corner units, under-sink configurations, and custom angular joinery, this hinge delivers a full 110° opening arc combined with integrated BLUMOTION soft-close damping for quiet, controlled motion every time.

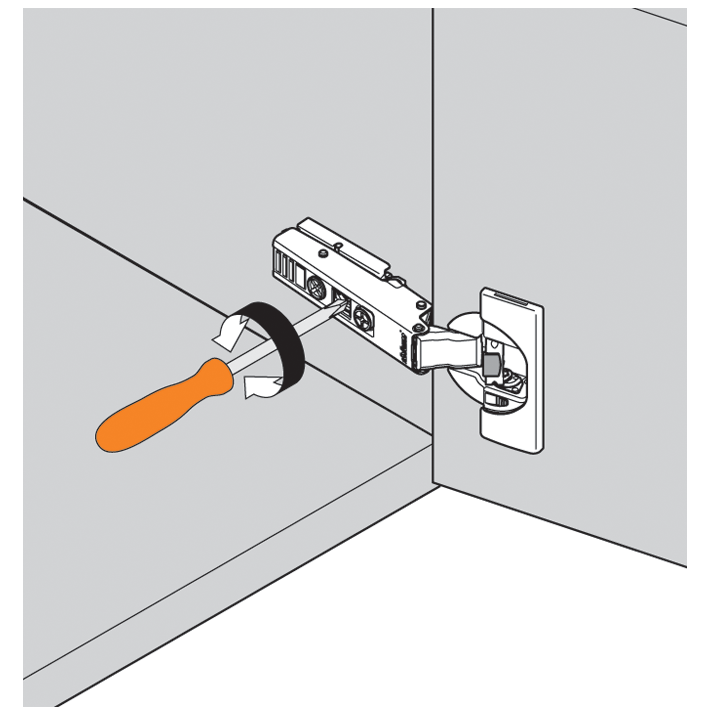

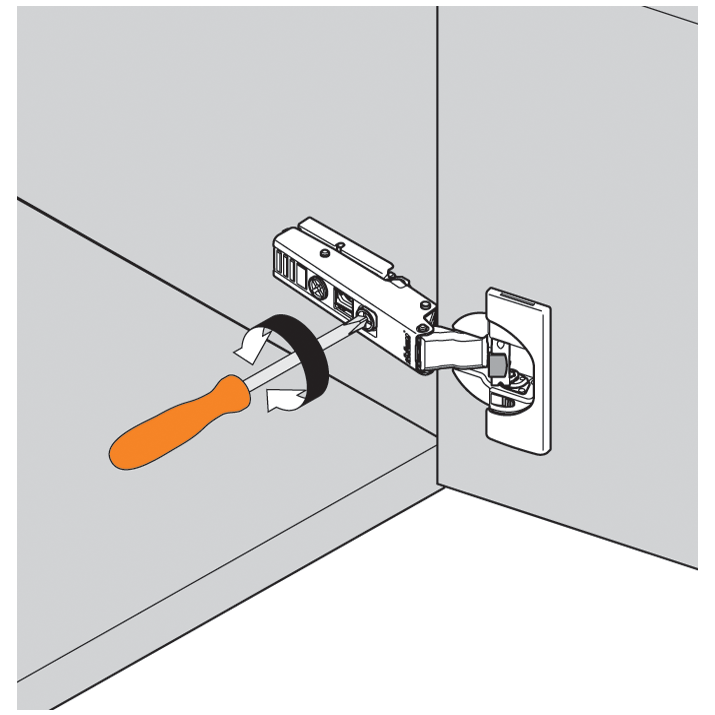

Engineered on the proven CLIP top platform, the hinge snaps onto the mounting plate without tools — simply press, click, and adjust. Three-dimensional adjustment lets you fine-tune the door position after installation: ±2 mm side-to-side and +3/−2 mm in depth. Available with either a screw-on or press-in INSERTA steel boss for flexible mounting options.
Finished in durable nickel plating, this hinge is built for the rigours of daily residential and commercial use. Pair it with a Blum CLIP mounting plate (sold separately) to complete the installation.
Technical Specifications
| Opening Angle | 110° |
| Cabinet Angle | −45° |
| Damping System | BLUMOTION integrated soft-close |
| Cup Diameter | 35 mm |
| Door Application | Max. overlay |
| Boss Assembly | Screw-on / INSERTA (press-in) |
| Boss Material | Steel |
| Side Adjustment | ±2 mm |
| Depth Adjustment | +3 / −2 mm |
| Finish | Nickel plated |
Applications
Designed specifically for cabinetry with a −45° angled side panel. Ideal for deep base-corner cabinets, custom angular kitchen islands, under-counter angled units, and bespoke display cases where panels meet at a steep negative angle. Also suited for commercial millwork, reception desks, and built-in furniture requiring precise angled door articulation.
Compatible Products
| Fixing Type | Screw-On or Toolless |
| Brand | Blum |
| Closing Mechanism | Blumotion |
| Hinge Opening Angle | -45° |
| Finish | Nickel |
| Overlay | Full Overlay |
